Analysis

AI-Dojo and its underlying technologies provide a number of ways to analyze the behavior and performance of agents.

At the most rudimentary level, when a file logging is enabled, the system produces the information in the form of CSV entries that track sent messages, run statistics, configuration, and custom information. These CSV files have to be extracted from the AI-Dojo container and the analysis is completely up to users.

Provided the users have an Elasticsearch stack running and the elasticsearch options is selected when creating an environment, runtime data is stored in the database and can be analyzed through provided analytics.

First, there is an option to analyze particular runs with a Vega-powered Kibana extension that is in detail documented here: https://is.muni.cz/auth/th/jl0cs/. This visualization gives an overview of a network topology, enables to inspect traversing messages, and do a time-seek and replay of runs.

Here are some examples of how the visualization looks like:

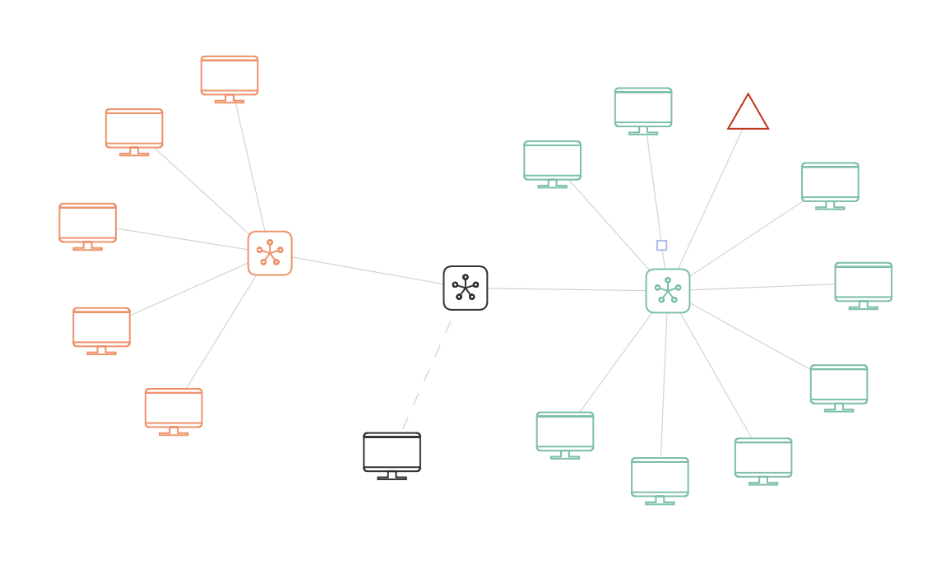

image Image1: Visualization of network topology

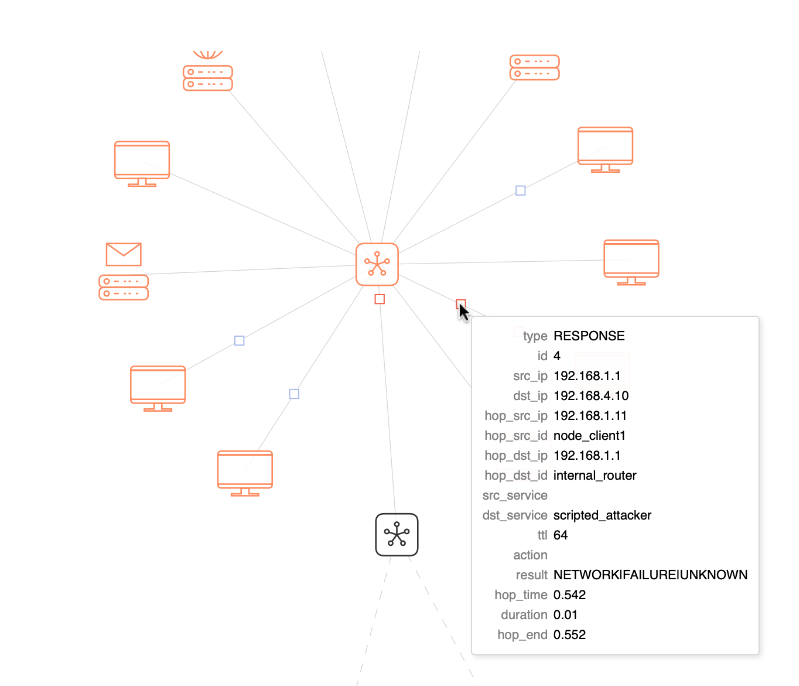

image Image2: Inspection of traversing messages

image Image3: The general UI with time controls

Second, for runs that are executed on the emulation platform, which does not enable such a deep insight into the internal details, users can utilize the visualization provided by the Cryton framework, which is included in the frontend.

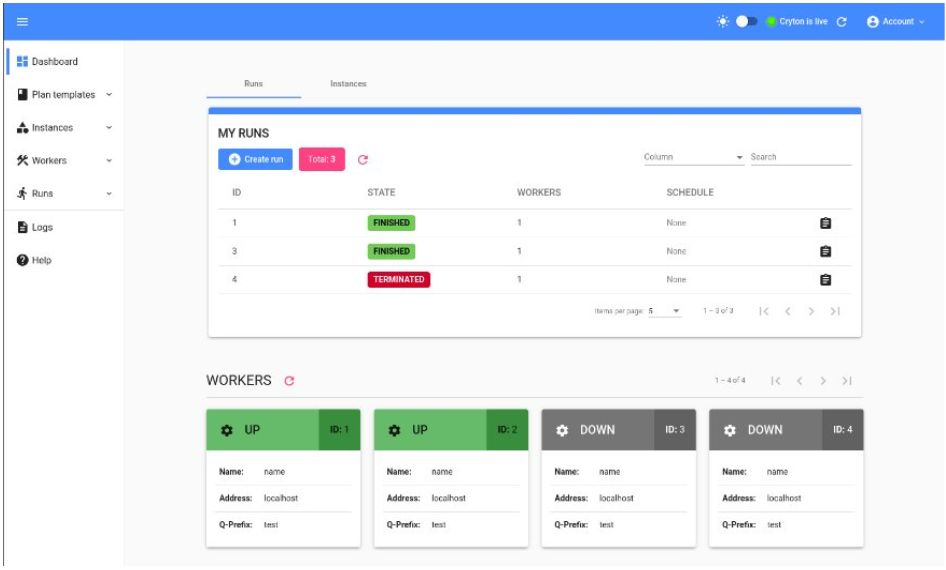

image Image4: Cryton UI

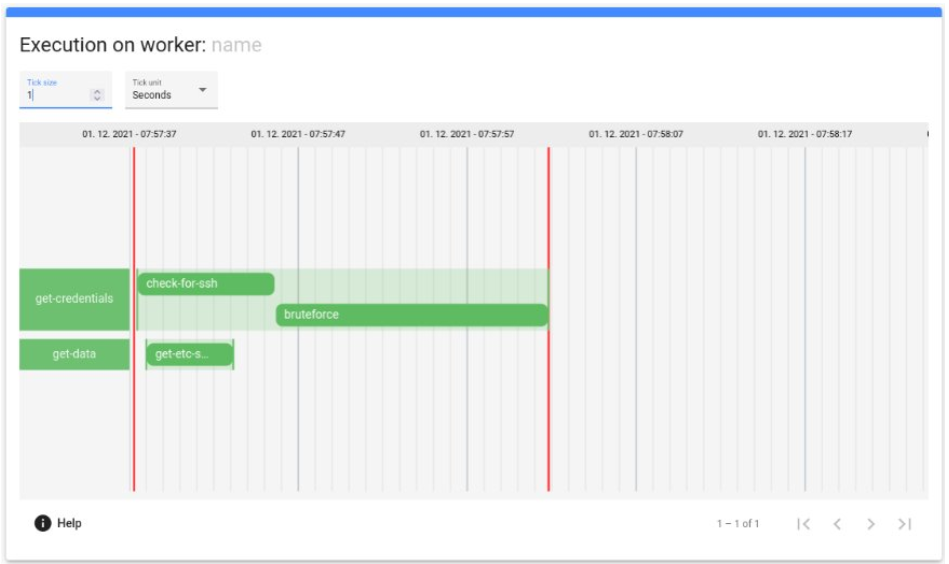

image Image5: Visualization of action sequence

And finally, when using agents through the NetSecGame coordinator (i.e., not fully custom agents), many a data is collected and can provide an important insights into agents' working.

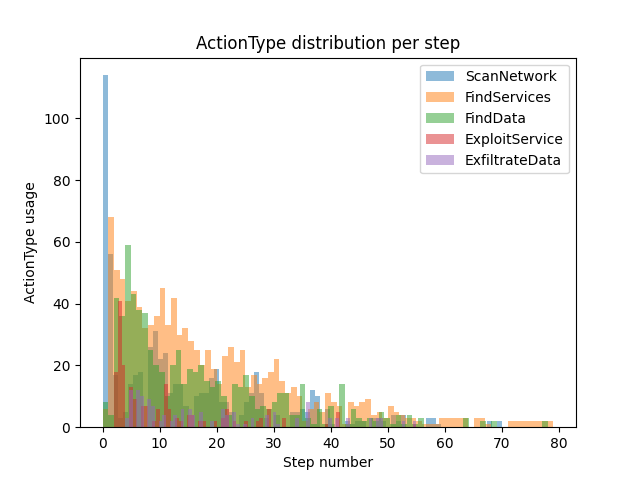

image Image6: Histogram of action utilization

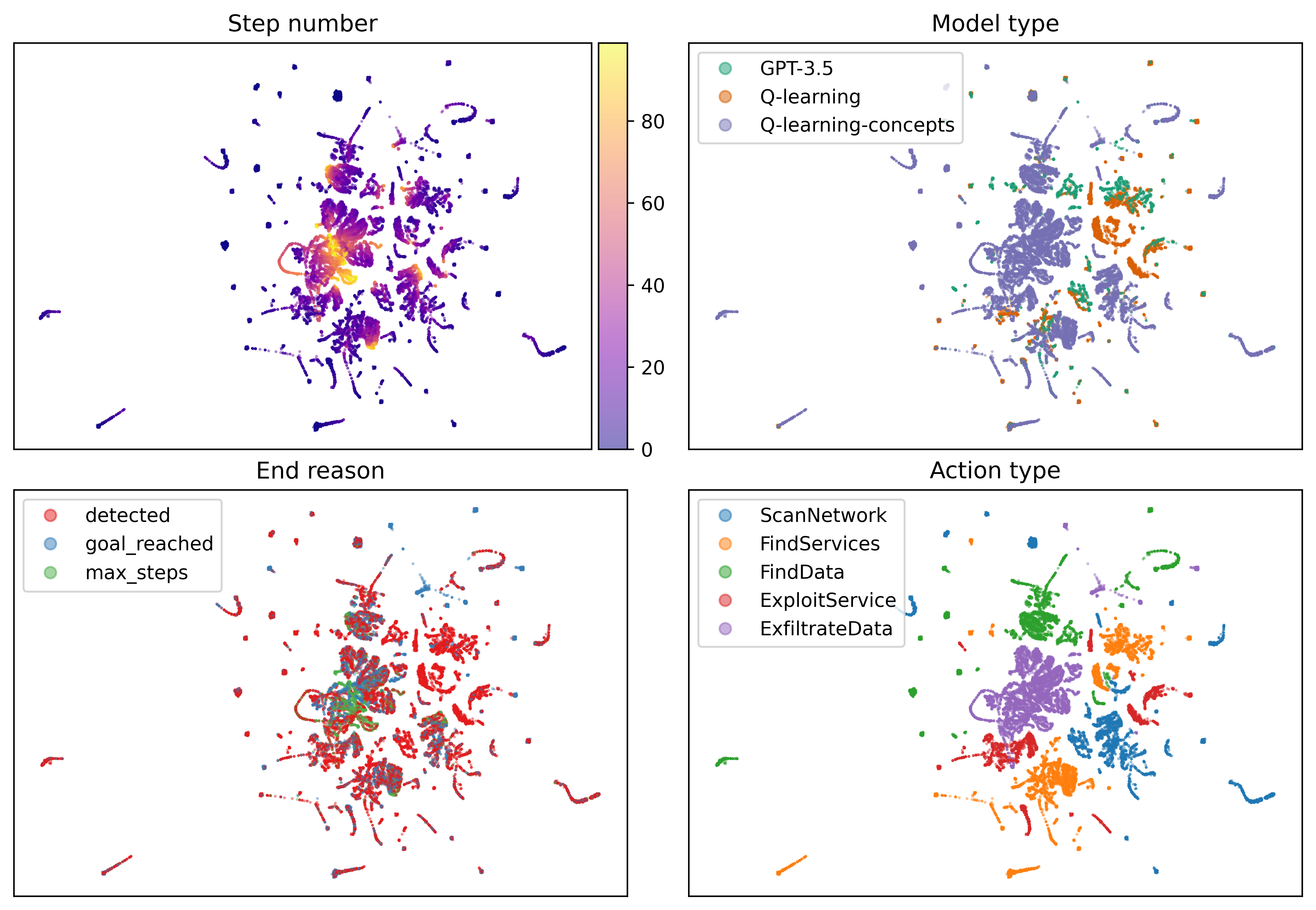

image Image7: Trajectory step comparison

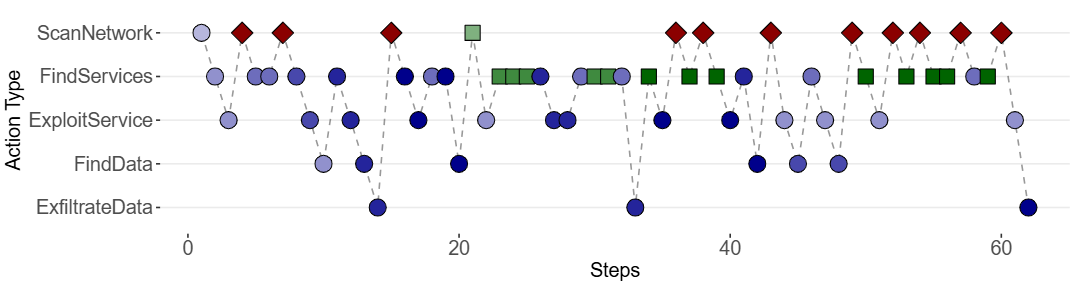

image Image8: Action sequences

Despite our efforts, these analytic tools are still in the prototype mode, so they may be sometime hard to use or to even launch correctly. Depending on the time you are reading this, you may need to contact us if you want to utilize these visualizations.
